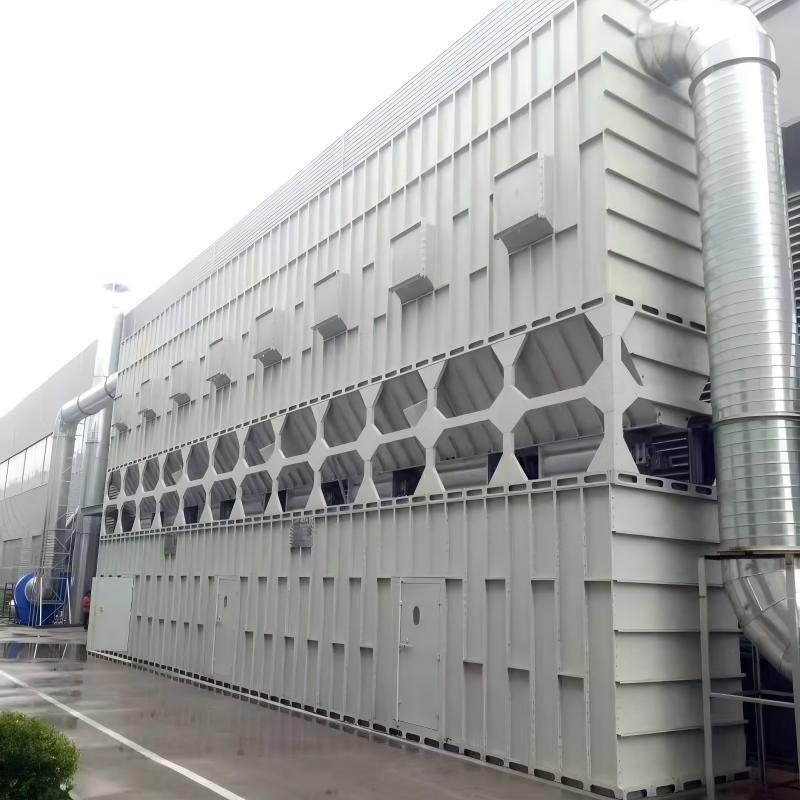

Large-scale wood processing plant dust collection and filtration system

Λεπτομέρειες προιόντος

Τόπος καταγωγής: Κίνα

Μάρκα: QiaoDa

Πιστοποίηση: CE

Αριθμό μοντέλου: QDMC-600

Όροι πληρωμής & ναυτιλίας

Ποσότητα παραγγελίας min: 1

Τιμή: 49800

Συσκευασία λεπτομέρειες: Όπως απαιτείται

Χρόνος παράδοσης: 20 εργάσιμες ημέρες

Όροι πληρωμής: T/T

Πάρτε την καλύτερη τιμή
Επισημαίνω:

industrial dust collection system for wood processing

,

large-scale wood dust filtration system

,

wood plant dust collection with warranty

Όνομα προϊόντος:
Σύστημα συλλογής βιομηχανικής σκόνης
Τύπος μάρκετινγκ:
Καυτά προϊόντα το 2026
Χαρακτηριστικά:
Νέο σχέδιο
Υλικό:
ανθρακούχο χάλυβα ή ανοξείδωτο χάλυβα
Όγκος αέρα:
314000 m3/h
Ταχύτητα φίλτρου:
1.0M/min
Εύρος θερμοκρασίας λειτουργίας:
-20°C έως 120°C
Προσαρμοσμένο:
αποδέχομαι
Αποδοτικότητα φίλτρου:
99,99%
Κατάσταση:
Νέος
Τύπος εγκατάστασης:
Εσωτερική/Εξωτερική
Φιλτράρισμα μέσων:
Κουστούμι ύφασματος ή φίλτρο
τύπος:
Συλλέκτης σκόνης
Τύπος καθαρού φίλτρου:
Αυτοματοποιημένη ανατίναξη σκόνης
Όνομα προϊόντος:
Σύστημα συλλογής βιομηχανικής σκόνης
Τύπος μάρκετινγκ:
Καυτά προϊόντα το 2026
Χαρακτηριστικά:
Νέο σχέδιο
Υλικό:
ανθρακούχο χάλυβα ή ανοξείδωτο χάλυβα
Όγκος αέρα:
314000 m3/h
Ταχύτητα φίλτρου:
1.0M/min
Εύρος θερμοκρασίας λειτουργίας:
-20°C έως 120°C
Προσαρμοσμένο:
αποδέχομαι
Αποδοτικότητα φίλτρου:
99,99%
Κατάσταση:
Νέος
Τύπος εγκατάστασης:
Εσωτερική/Εξωτερική
Φιλτράρισμα μέσων:
Κουστούμι ύφασματος ή φίλτρο
τύπος:
Συλλέκτης σκόνης
Τύπος καθαρού φίλτρου:
Αυτοματοποιημένη ανατίναξη σκόνης
Large-scale wood processing plant dust collection and filtration system
Large-Scale Wood Processing Plant Dust Collection and Filtration System
Wood processing operations generate substantial amounts of sawdust, wood chips, and flammable fine wood dust, creating workshop pollution, safety hazards, and mechanical wear. Our professional centralized dust collection and filtration system is custom-engineered for wood cutting, sanding, polishing, and milling applications. Featuring high suction efficiency, explosion-proof performance, and automatic pulse cleaning functions, this system delivers efficient workshop air purification and compliant exhaust emissions.
Technical Specifications
Product Name Woodworking Dust Collector
Model Customized
Motor Power Customized
Air Flow Customized
Static Pressure Customized
Filtration Area Customized
Filter Bag Quantity Customized
Working Voltage 380V/220V 50/60Hz
Noise Level ≤75dB
Dust Removal Efficiency ≥99.5%
Application Woodworking Factory, Furniture Processing, Wood Cutting & Polishing
Dimension Customized
System Operation Process
Negative Pressure Air Suction The system utilizes negative pressure centralized air suction with multi-stage filtration purification. A high-pressure fan creates stable pipeline negative pressure to rapidly capture floating dust and bulk sawdust from various wood processing machines through dedicated suction ports.
Cyclone Separator - Primary Filtration Dust-laden air first enters the cyclone separator for primary coarse filtration. Large wood chips and coarse sawdust are separated via centrifugal gravity and fall into the ash hopper, effectively preventing subsequent filter bag blockage and reducing filtration load.
Bag Filter Chamber - Fine Filtration Fine residual dust enters the bag filter chamber and is trapped on the surface of high-performance polyester filter bags, while clean air penetrates the filter media into the clean air chamber.
Intelligent Pulse Cleaning The intelligent pulse control system periodically triggers electromagnetic pulse valves to spray instant compressed air, blowing accumulated dust off the bag surface into the bottom ash hopper for centralized collection.
Purified Air Discharge Finally, the fully purified air that meets industrial emission standards is discharged outdoors, achieving continuous workshop air purification and maintaining optimal working conditions.
